80kg/h Wire And Cable Extrusion Machine With PVC / PE Insulation

Name: 80kgh Wire And Cable Extrusion Machine With PVC PE Insulation
Brand: Hooha
Price: 221500 USD

Buy cheap 80kg/h Wire And Cable Extrusion Machine With PVC / PE Insulation product

Brand Name : Hooha

Model Number : HH-E-50+35

Certification : Iso & Ce Certified

Place of Origin : Guangdong, Dongguan

MOQ : 1 Set

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 10000 Sets/year

Delivery Time : 60 work days

Packaging Details : Film packing

Price : 221500USD/PER

Inlet Wire Diameter : 0.5~3 mm

Finished Wire Diameter : 1~5 mm

Cross Sectional Area : 0.5~2.5 square mm

Extrusion Speed : Max 500 m/min

Extrusion Capacity : 80 kg/h

Installed Capacity : 45 kva

Voltage : 380V, can be customized

Weight : 3500 kg

Measurement (L*W*H) : 20*3*3 m

Workers recommendation : 3 workers

Contact Now

Products Description

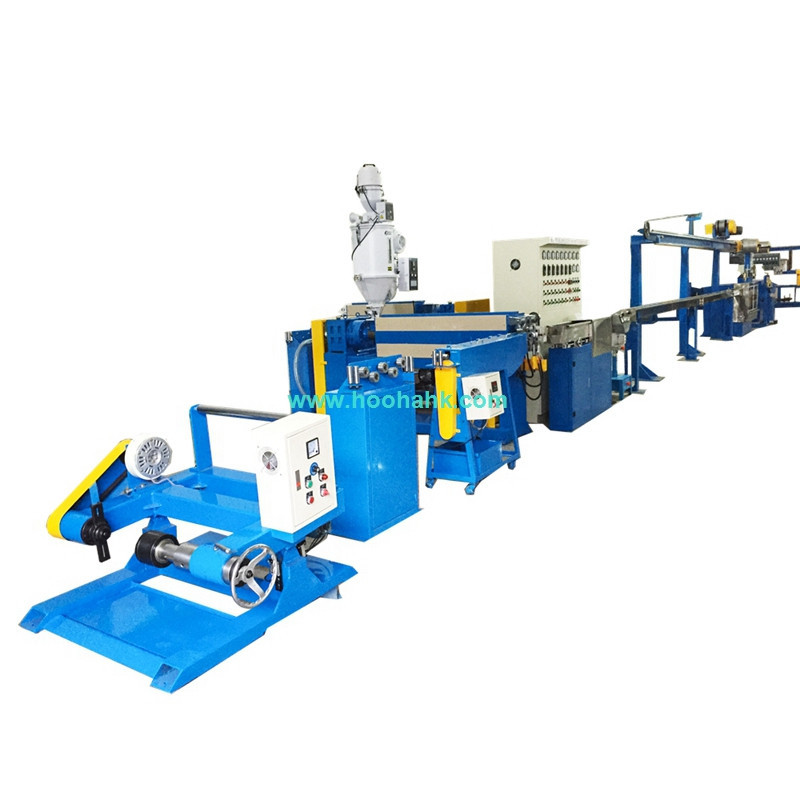

HH-E-50+35 Extrusion Machine

80kg/h Wire And Cable Extrusion Machine With PVC / PE Insulation

No.	Items	Features
1	Inlet Wire Diameter	0.5～3 mm
2	Finished Wire Diameter	1～5 mm
3	Cross Sectional Area	0.5～2.5 square mm
4	Extrusion Speed	Max 500 m/min
5	Extrusion Capacity	80 kg/h
6	Installed Capacity	45 kva
7	Voltage	380V, can be customized
8	Weight	3500 kg
9	Measurement (LWH)	2033 m
10	Workers recommendation	3 workers

Details Images

The pay off

Bobbin size 400-630 mm 2. Loading 500 kg
Pay-off speed 500 m/min 4. Tension 5kg magnetic powder clutch


The 5-wheel straightening device

1. Wheels 5*Φ60mm, dual grooves on each

Treatment Chromed and anodized for long-term usage
Bearing 6000, 6202
Material Q-235-A/Q-245-A/#45


The host extruder

1. Insulation material PVC, PE 100% plasticization

2. Extrusion capacity Max 80 kg/h 3. Rotation speed Max 110 rpm 4. Motor 11 kw

Recommend Products

630 bunching machine

1. For the 1-6sqmm cable copper bunching2. The speed 50-70m/min
3. The power 7.5KW

The print machine

1. For the cable words print use2. HOOHA can provide the print wheel

Installation Instructions

Our service

1.Engineer guide installation video2.The machine will doing the test before delivery and will send online test video
3.The drawing for install, electrical,die,screw will send to client

The technical support

The machine arrangement in the factory2.The cable making production technical card
The engineer guide the cable making solution
The power, air,water arrangement guide

Product packaging

The raw material packing

1.The CCA copper will packing anti the oxidation way  2.The PVC/PE/FEP packing will use the paper box and wood packing
3.The tape also use the paper box add wood package

The machine packing

1.usually use the PE foam package 2.The base need wood package
3.The tape will fixed the machine on the container

The machine package arrange

1.The machine will arrange the drawing of each machine on the container before loading 2.save the space for our client
3.ensure the machine delivery 100% safty

The plastic+wood packing

1.The usually packing way is plastic packing

The wood packing

1.The wood package will according to the customer's inquiry then design to wood packing

The fixed by steel or tap

1.The machine will fixed by the steel rope and Tap in the container

Company Profile

Where	the company is based in Humen Town, Pearl River Delta, Dongguan city, Southeast China.		Business	1.wire and cable 2. wire and cable equipment 3. Cast aluminum hardware
What	Being an innovative Foreign trade enterprises for foreign high-quality enterprises and Chinese high-quality enterprises.	we have been mainly engaged in wire and cable equipment spare, wire and cable and die casting parts export business.	major business	In India, Dubai, Nigeria, Indonesia, The United States , among which there are agents and after-sales service , attending considerable number of expo every year .

Why Choose Us

The quality and service system

10 years export experience will support our client2.The payment way more choice
The delivery control by engineer team more on time
The quality system control by engineer more reach our clients target
The after service more humanization from HOOHA team

The supplier chain experience

Save your time on the project 2.More humanization solution for the project running
16 years professional on the cable making solution supplier chain more competition price
20 years working experience engineer team guide your cable making solution more safety and quick.
